18 Wheel escapement
Just stumbled across the 21600 vph escapement while diving into NIHS standards. Ever tried it? 🤔 Playing around with 15-18-20-24 teeth setups now—feels like a mini adventure! Oh, and polishing up the boot shape has been oddly satisfying. Check out the sketches here: https://thebitcoinwatchmaker.com/post/view/18-wheel-escapement/
You're exploring different options for your watch's escapement, specifically looking at a 21600 vibrations per hour (vph) setup after finding 28800 vph may be too much. You've got setups ready for various tooth escapements and are fine-tuning the design, adding more parameters for customization. The takeaway? You're diving deep into the mechanics to optimize performance and design. 🕰️
21600 vph
After continuing studying NIHS standards, I noticed a vph I was not familiar with... 21600vph Is it good? I dont know, but since the 24 wheel is what I need for the 28800 vph, and according to chatgtp it might be a lot, Im trying other options

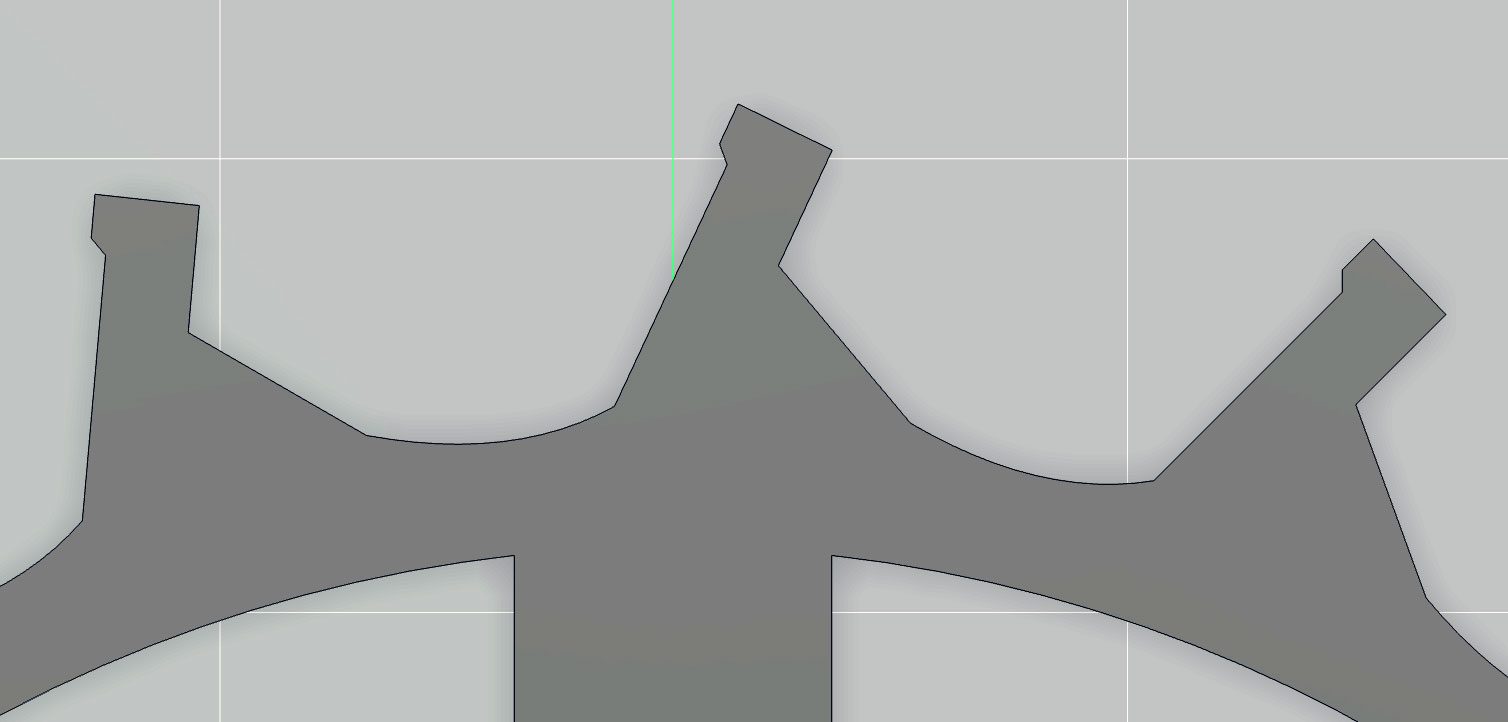

The good thing is that I have setups now for 15-18-20-24 teeth escapements.Also polishing the shape of the boot a bit more

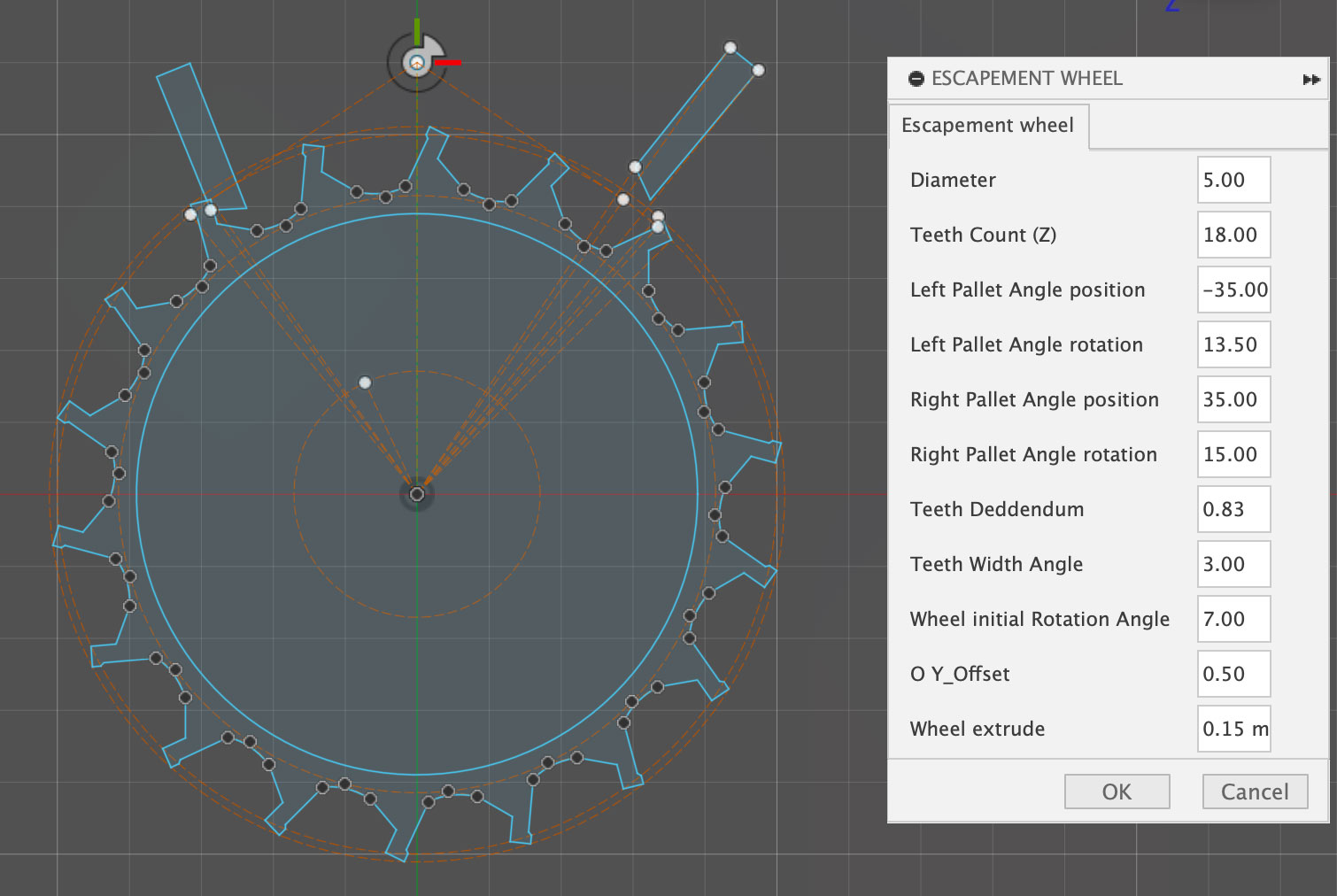

Added a bunch more params to customize the wheel:

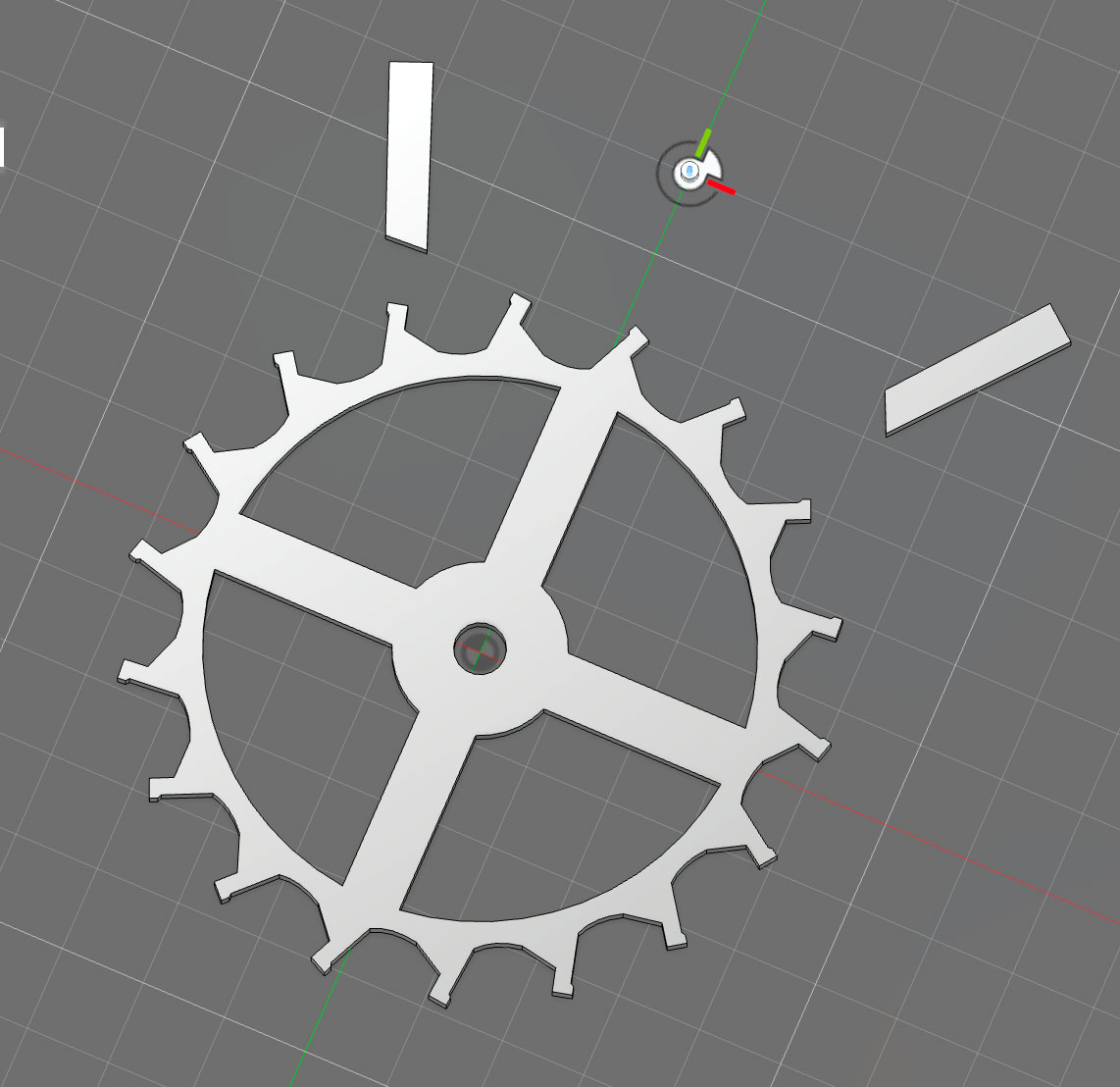

18 tooth with the pallet forks in their angle
Whole wheel with the stones
