Following NIHS - Refactoring.
Been closely following NIHS standards, with the help of chatgpt, and Alex from watchrepairtutorials.com calculated precise mainspring dimensions:
- Thickness: 0.13 mm
- Length: 551 mm
- Width: 1.33 mm
Additionally, I ensured the correct fit of the barrel arbor, with a total height of 1.58 mm to fit smoothly inside the barrel, maintaining a clearance of 0.1 mm on both the top and bottom to prevent friction. I've also decided on the use of a bride rapportée (inserted bridle) for its superior control in automatic winding. The technical details I've explored, including the use of Nivaflex mainsprings and calculations based on NIHS 11-02 standards, bring us closer to a well-engineered movement.
Stay tuned for more updates as I push forward with the prototype phase!

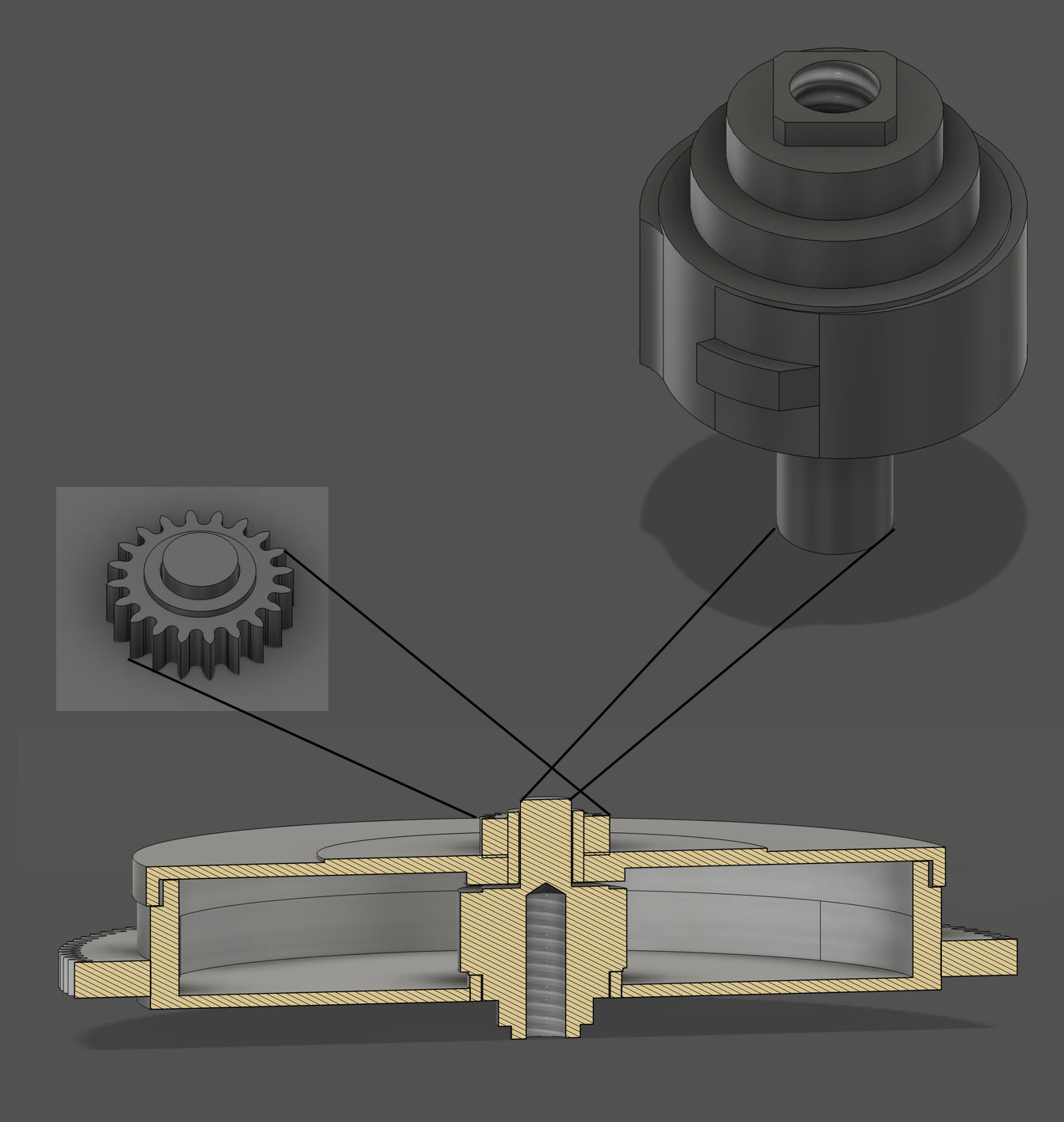

Barrel arbor, Mainspring barrel

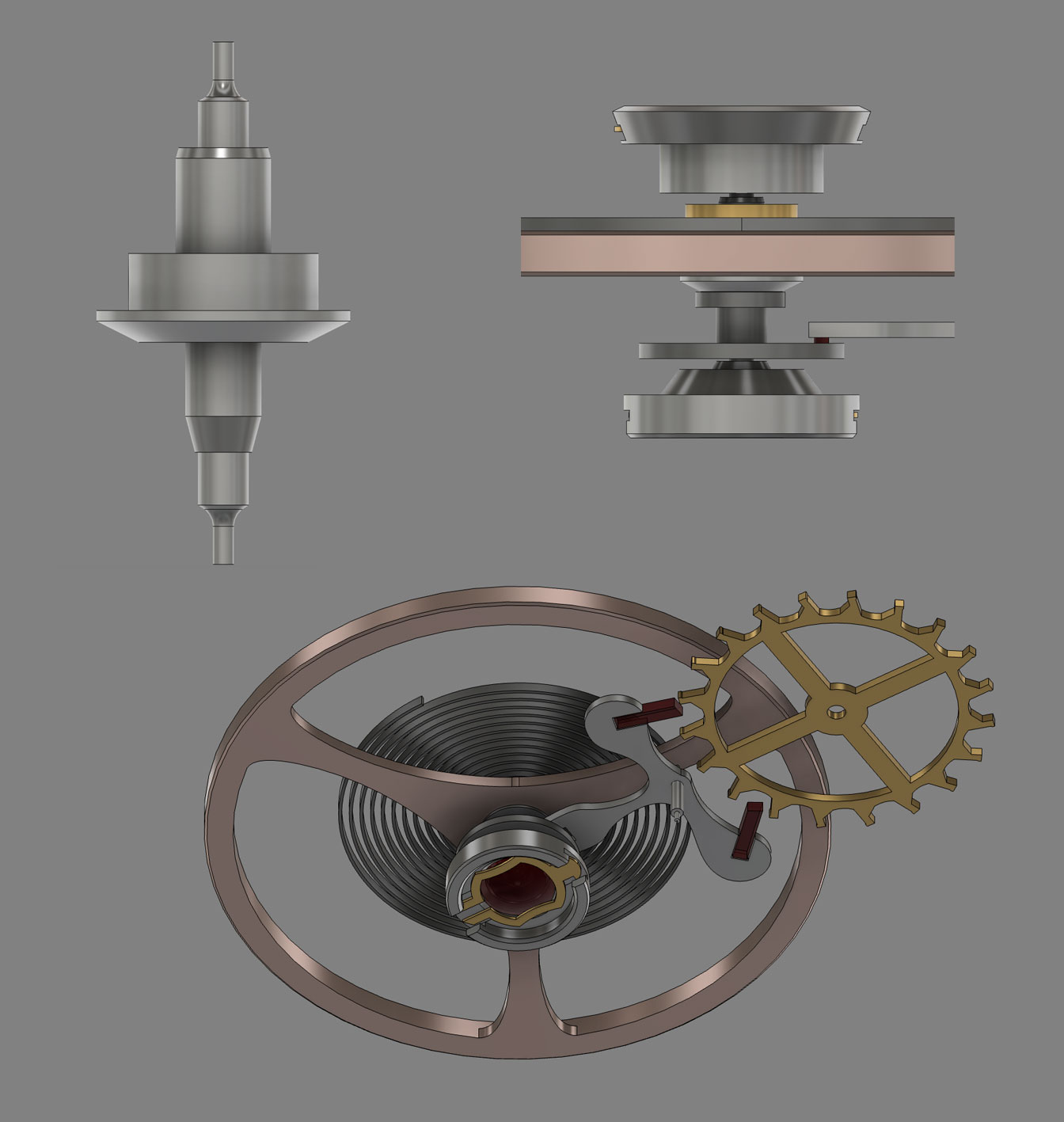

Escapement (yep missing the safety pin) -- target: 28800 vph
Im thinking of going with KIF, but need to explore more

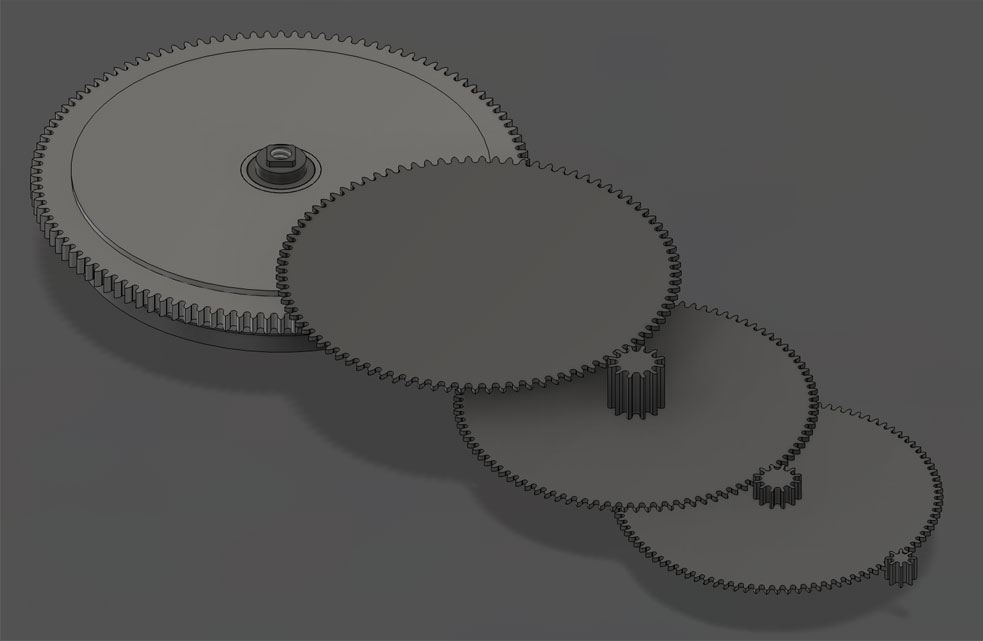

Train of wheels -- with proper reduction for the fourth wheel and minute wheel
