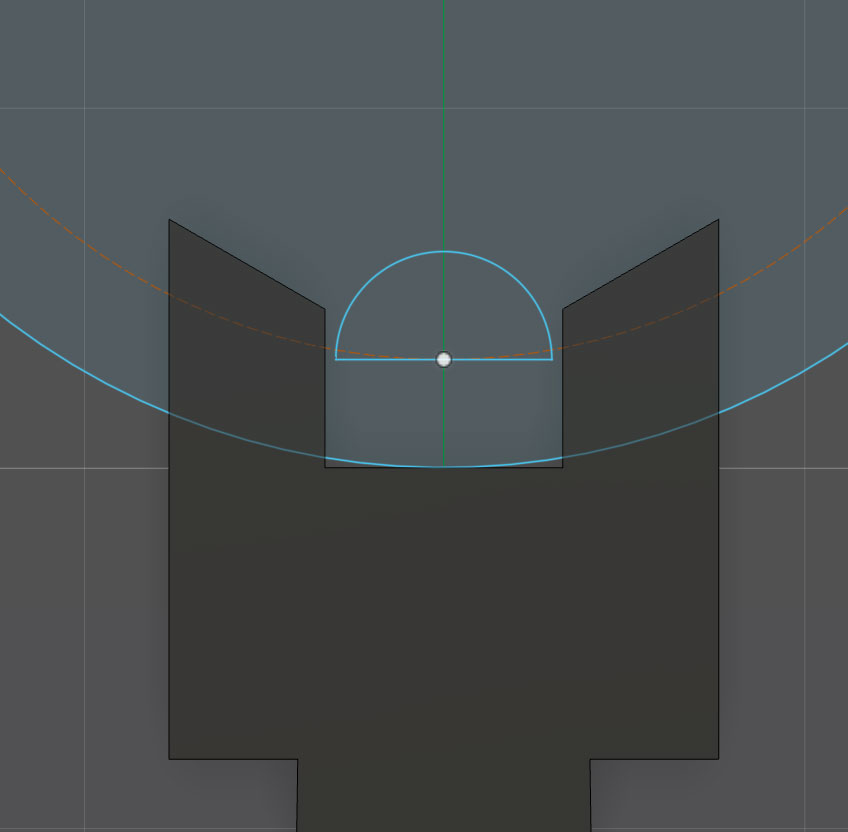

Fork and Balance Roller Jewel.

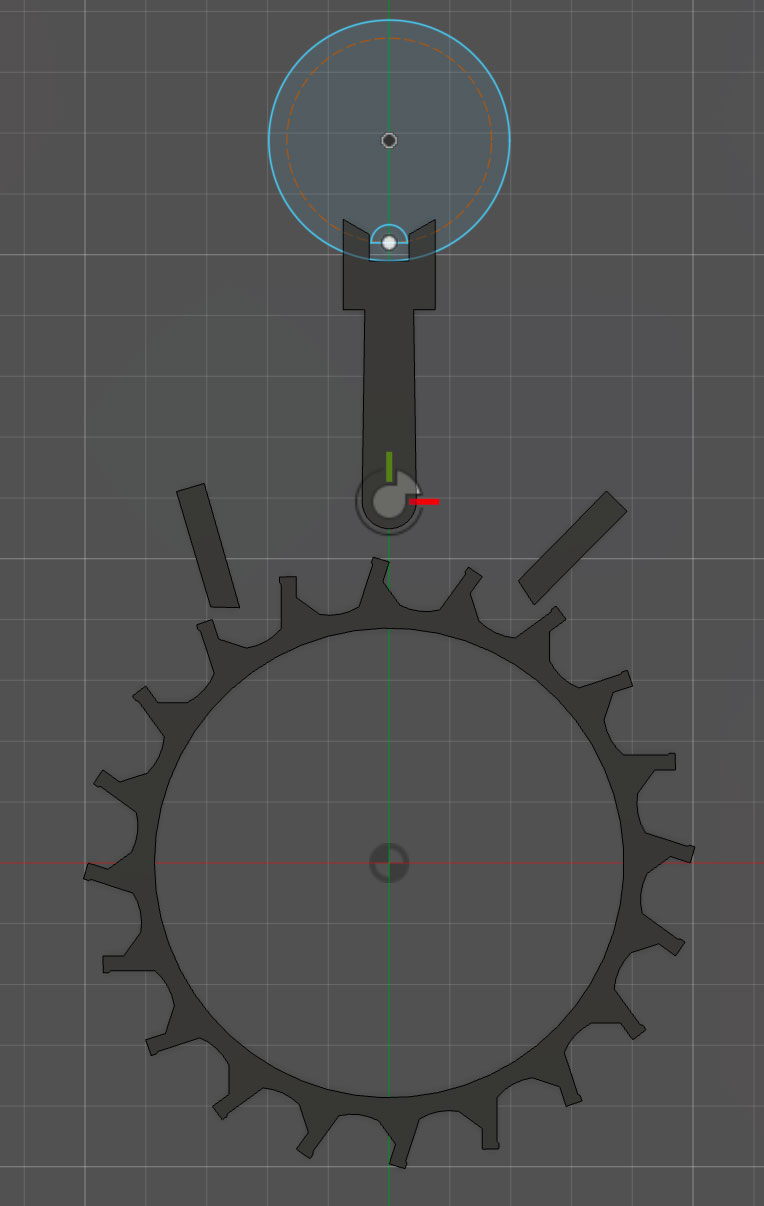

The animation on the previous post helped a lot! I added to the script building the fork based on the bergeon jewels I'm gonna test, it will be easy to change later
Also after receiving the book "The practical Escapement" by George Daniels, I discovered an update to the angles on generating the wheel and pallet to be able to reach 36000 vph. gonna try that
These are the jewels Im thinking of:
- Roller pin: Bergeon 31715
- Pallet Entry stone: Bergeon 30716
- Pallet Exit stone: Bergeon 30717
