Simple but Satisfying: M4 Clearance Holes 💡

Just spent the day drilling M4 clearance holes for a project plate, and wow, small wins feel big! Used Fusion 360, and ChatGPT helped nail down the feeds and speeds. Even had to get creative with the Elara, but it all came together nicely. Check out the journey! https://thebitcoinwatchmaker.com/post/view/simple-but-satisfying-m4-clearance-holes/ 🔧✨

Today’s project involved making four M4 clearance holes for an engine-supporting plate using Fusion 360 and ChatGPT for tool setup and speed adjustments. Even though the tool was a bit large for the Elara machine, some creative tweaks made it work smoothly, turning a simple task into a satisfying accomplishment. Small steps can lead to tangible real-world results, showing how technology and creativity can work hand in hand. 🔩

Simple but Satisfying: M4 Clearance Holes 💡

Today I did a small but meaningful exercise—making 4 clearance holes for M4 screws on a plate that will eventually support an engine. 🔩

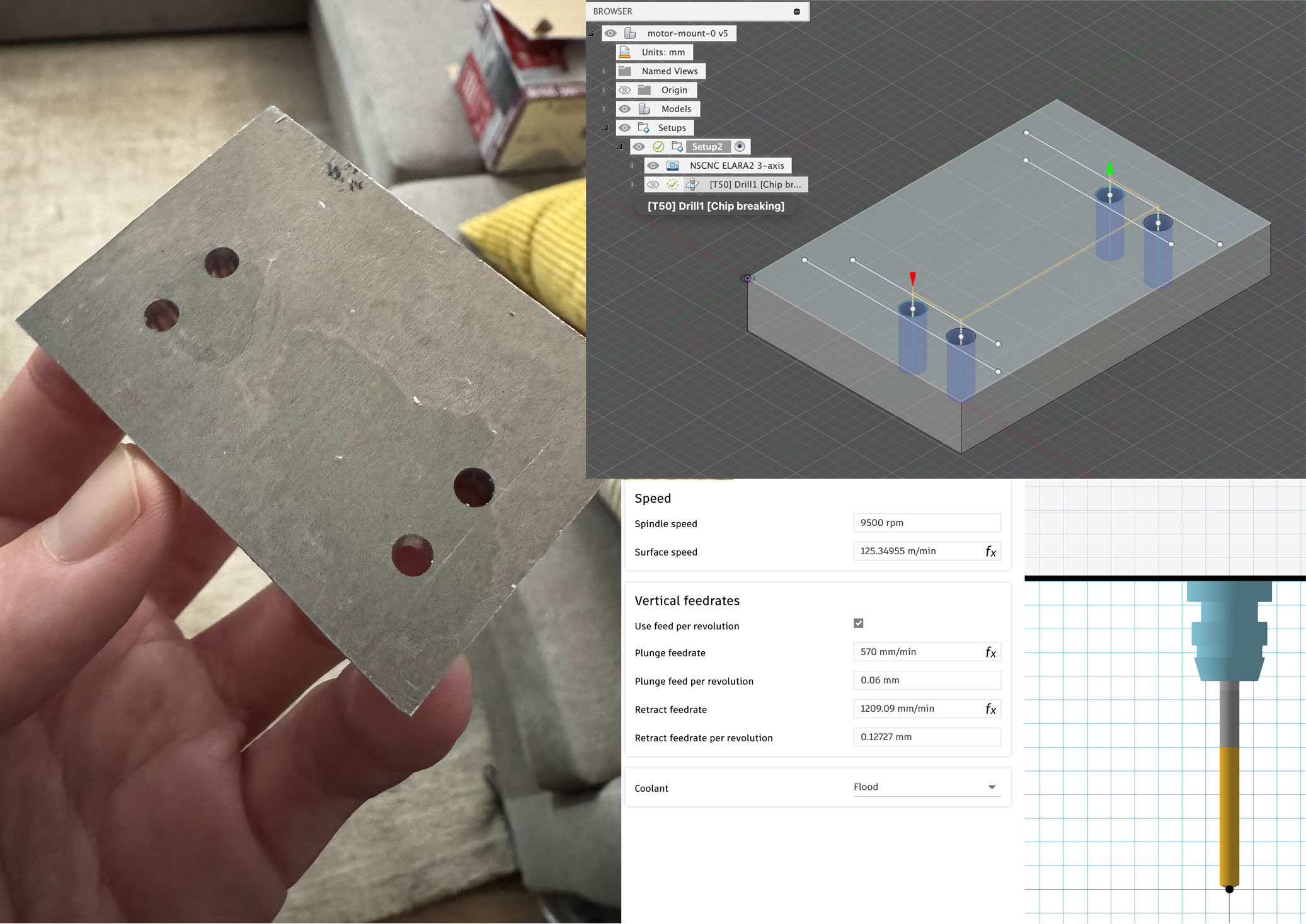

I modeled the part in Fusion 360, created the tool setup using the tool’s actual specs, and got help from ChatGPT to figure out the right feeds and speeds. It worked surprisingly well!

The tool I used was a bit big for the Elara, so I had to do some creative adjustments to make everything fit and run smoothly—but it held up, and honestly, I think it did a great job. 😊

Always fun to turn small steps into real-world parts!

sketch
